The V074 Wall Mount Hinge is designed for frameless shower enclosures requiring a strong and dependable glass-to-wall connection. Featuring a clean, contemporary profile and heavy-duty construction, it delivers the stability and performance needed for larger shower doors in both residential and commercial applications.
Product Details
Manufactured from high-quality solid brass, the V074 provides exceptional strength, corrosion resistance, and long-lasting durability in wet environments. It is compatible with 3/8" to 1/2" (10–12 mm) tempered glass, making it suitable for a wide range of premium frameless shower designs.
Built with a fixed, non-adjustable design, the hinge provides a rigid and secure installation, ensuring reliable door support once properly aligned and installed.
Door Capacity
|
Installation |
Glass Thickness |
Maximum Door Weight |
Recommended Maximum Door Width |
|
Two Hinges |
3/8" (10 mm) |
100 lbs (45 kg) |
34" (864 mm) |
|
Two Hinges |
1/2" (12 mm) |
100 lbs (45 kg) |
32" (813 mm) |
|
Three Hinges |
3/8" (10 mm) |
130 lbs (59 kg) |
34" (864 mm) |
|
Three Hinges |
1/2" (12 mm) |
130 lbs (59 kg) |
32" (813 mm) |
The V074 is designed for installation using standard tools, providing a straightforward installation process with a secure wall-to-glass connection.
Available Finishes

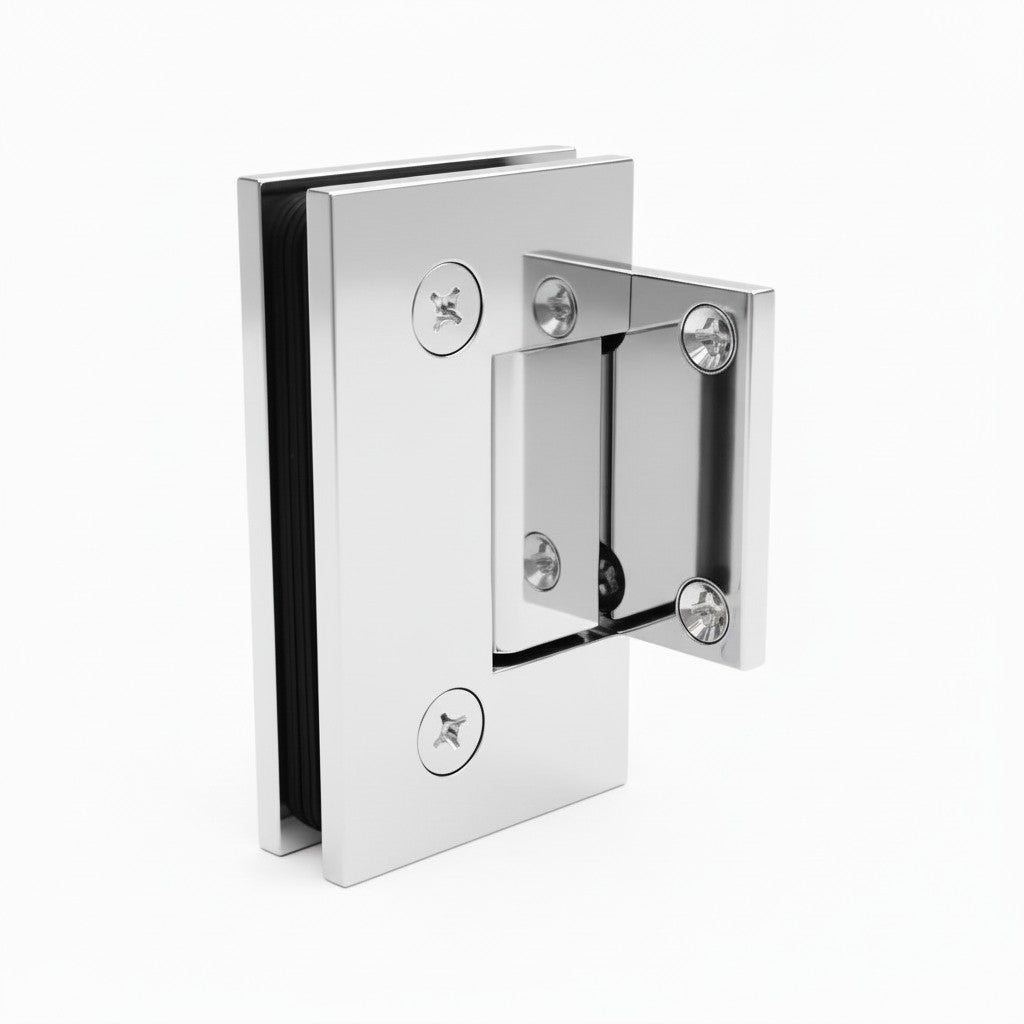

- Chrome

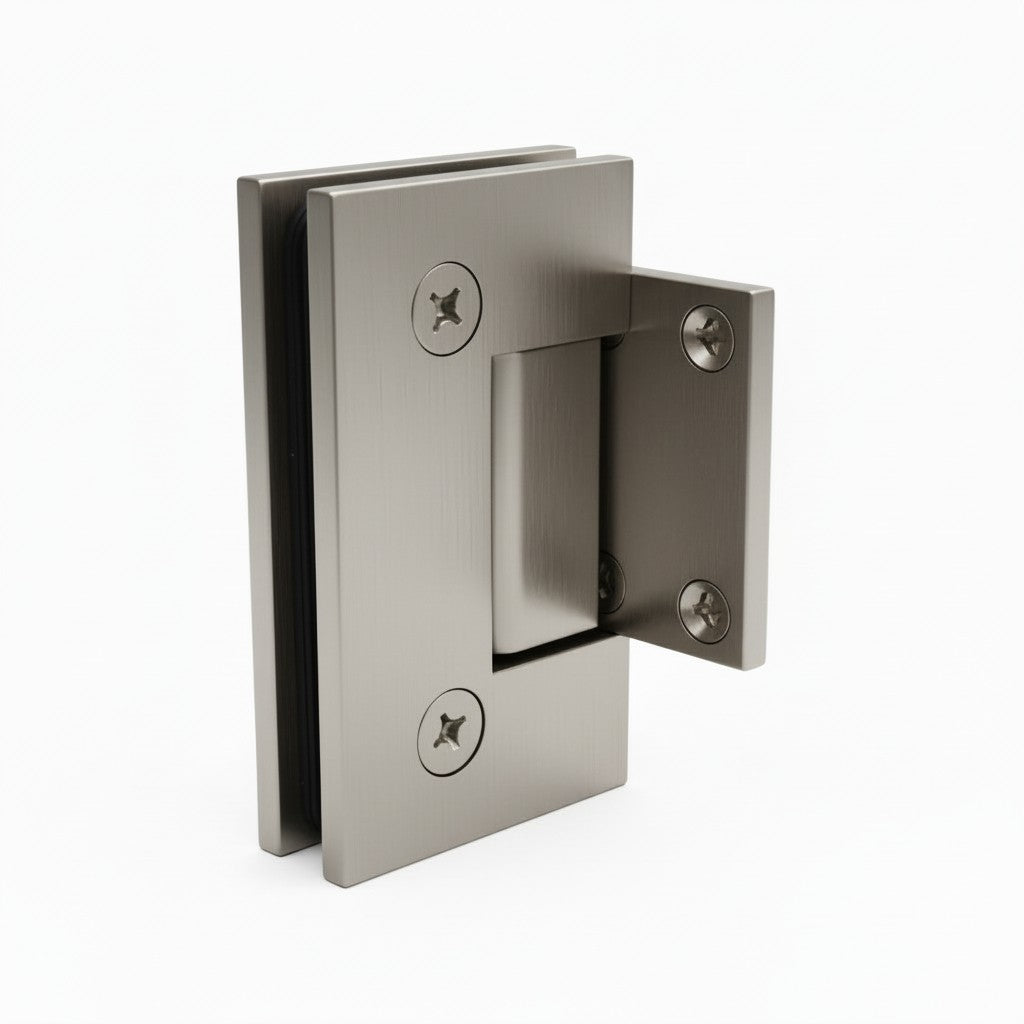

- Brushed Nickel
- Polished Nickel

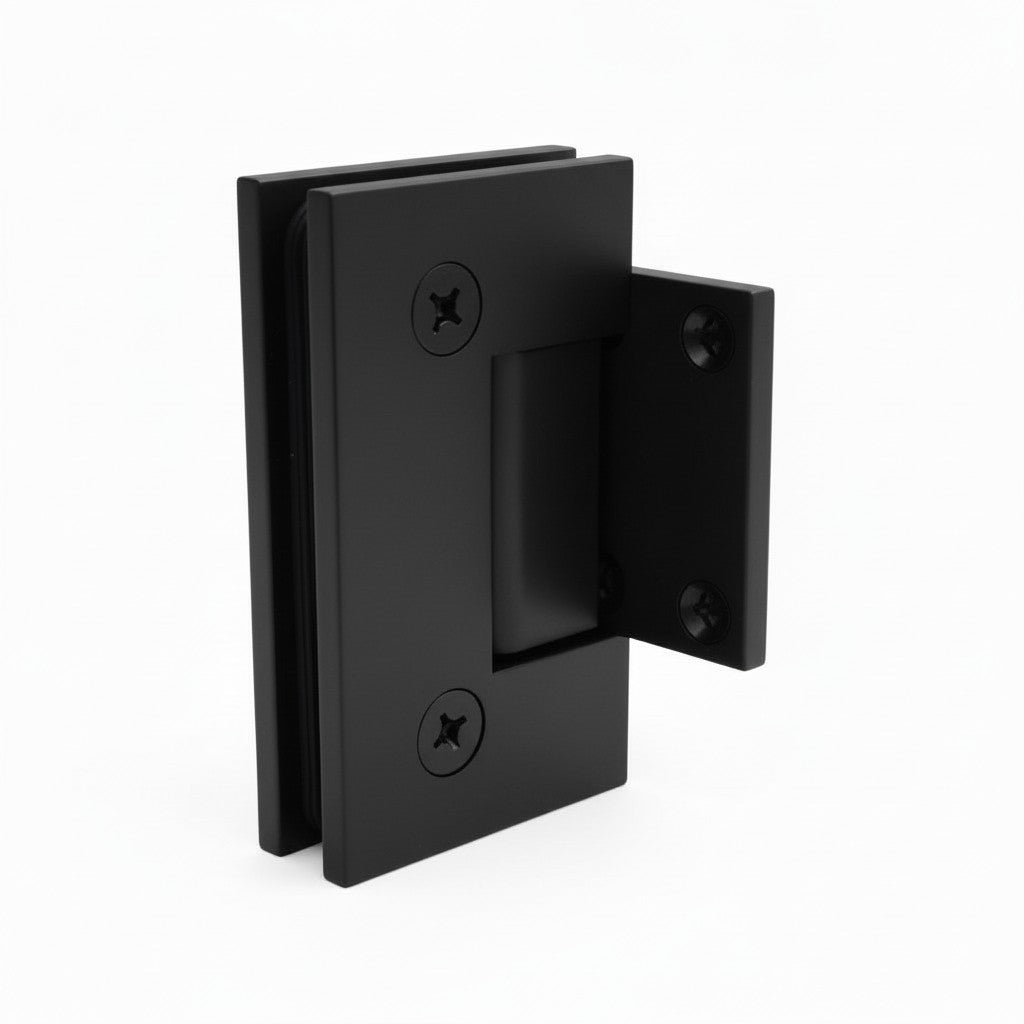

- Matte Black

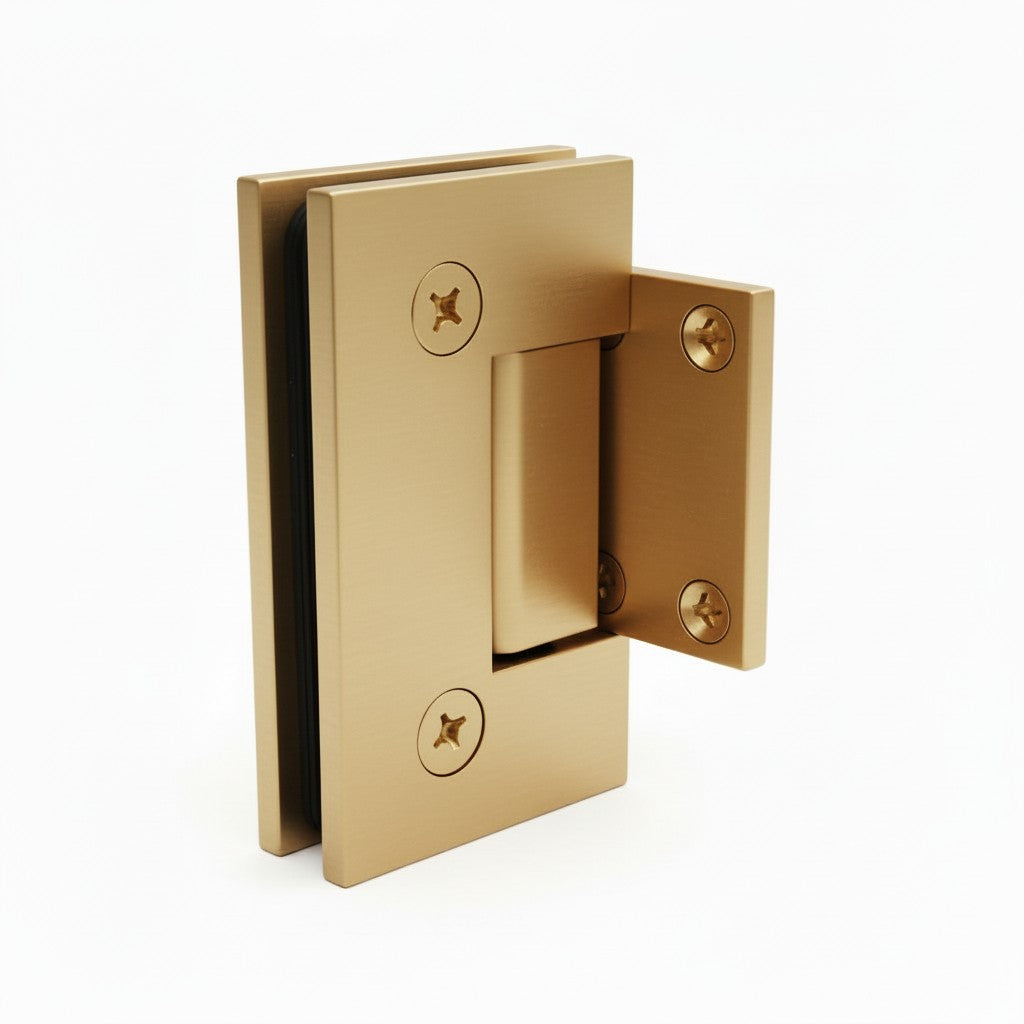

- Satin Brass
Recommended Applications
The V074 is an excellent choice for premium frameless shower enclosures requiring a heavy-duty wall mount hinge. Its robust brass construction, fixed-position design, and compatibility with thicker glass panels make it ideal for supporting larger shower doors while maintaining a clean, modern appearance.
Warranty: Backed by a 5-year manufacturer warranty.
