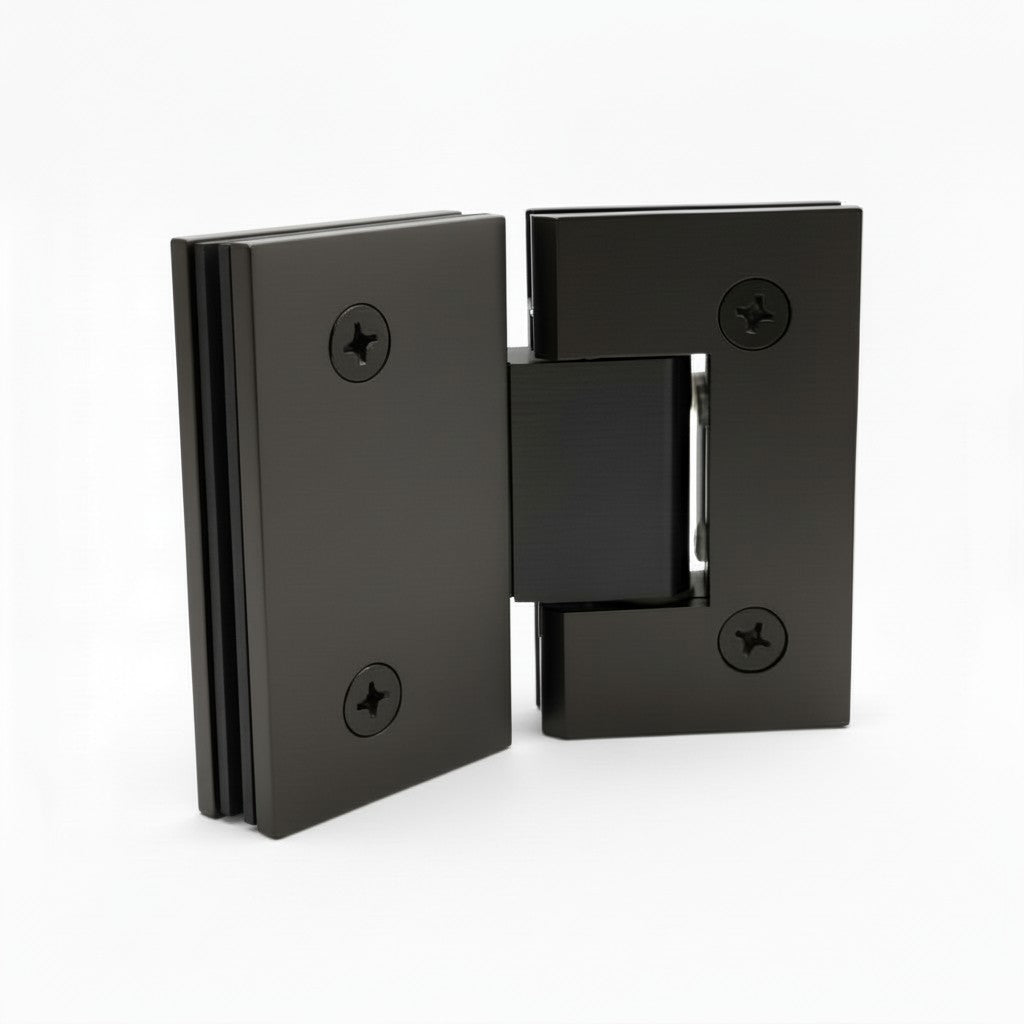

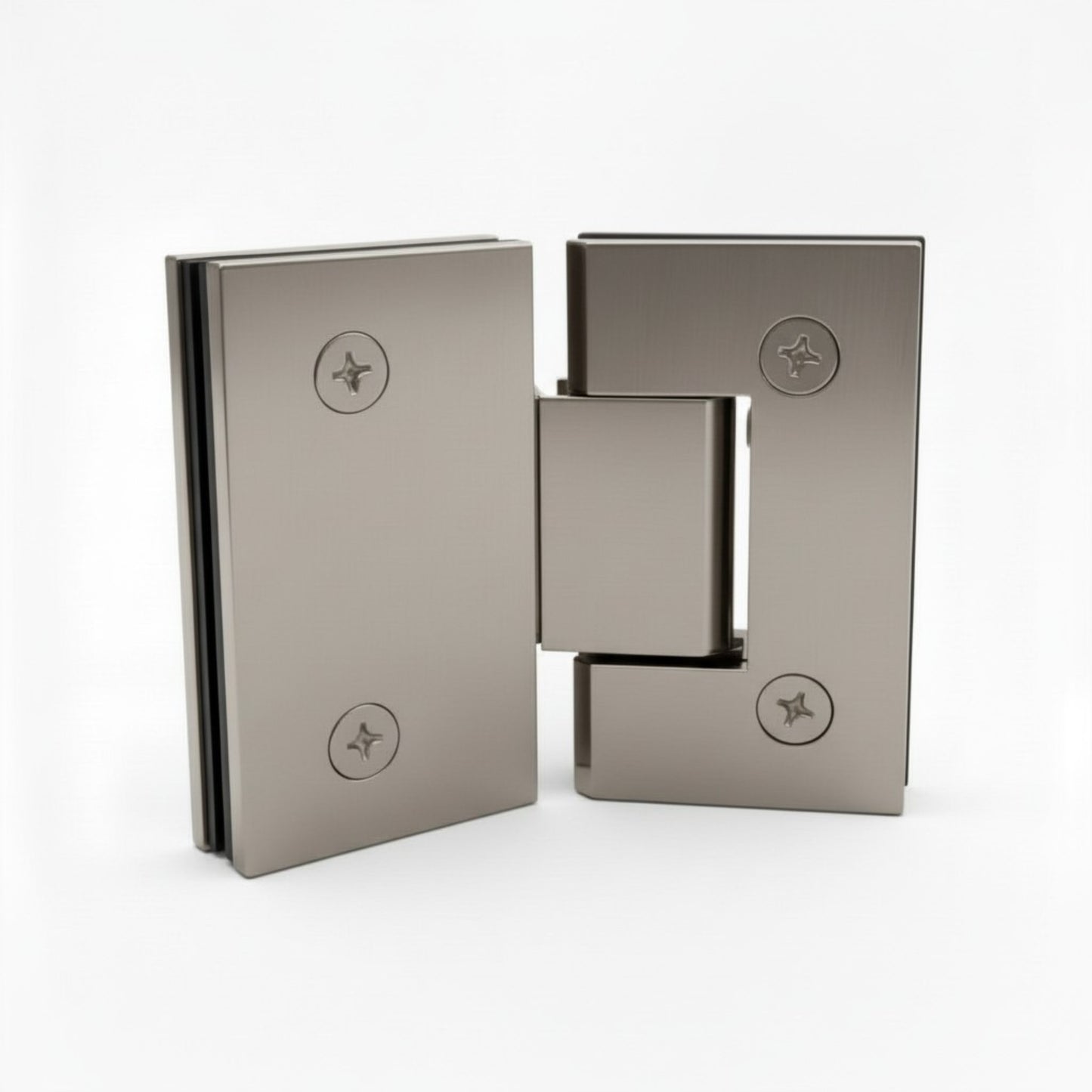

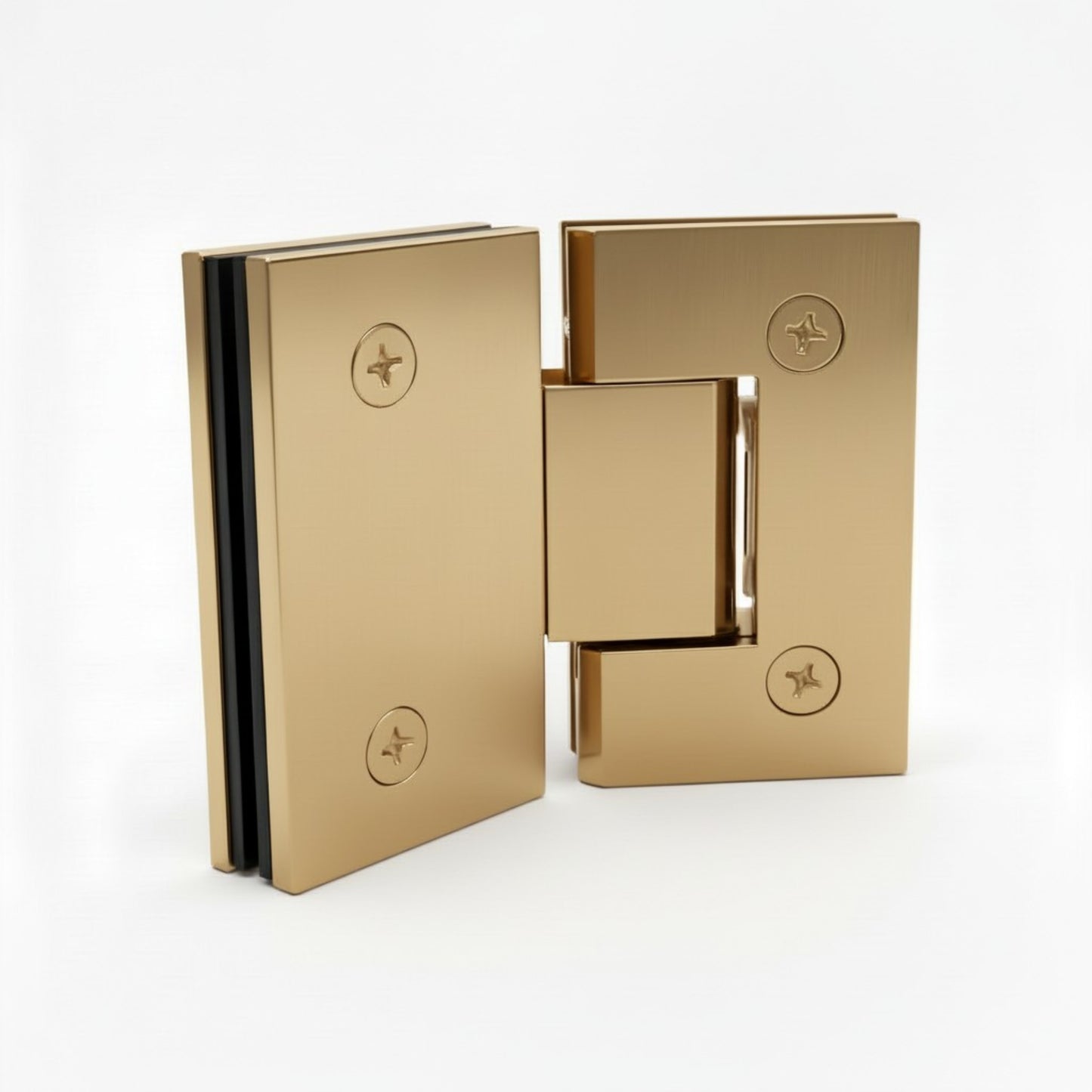

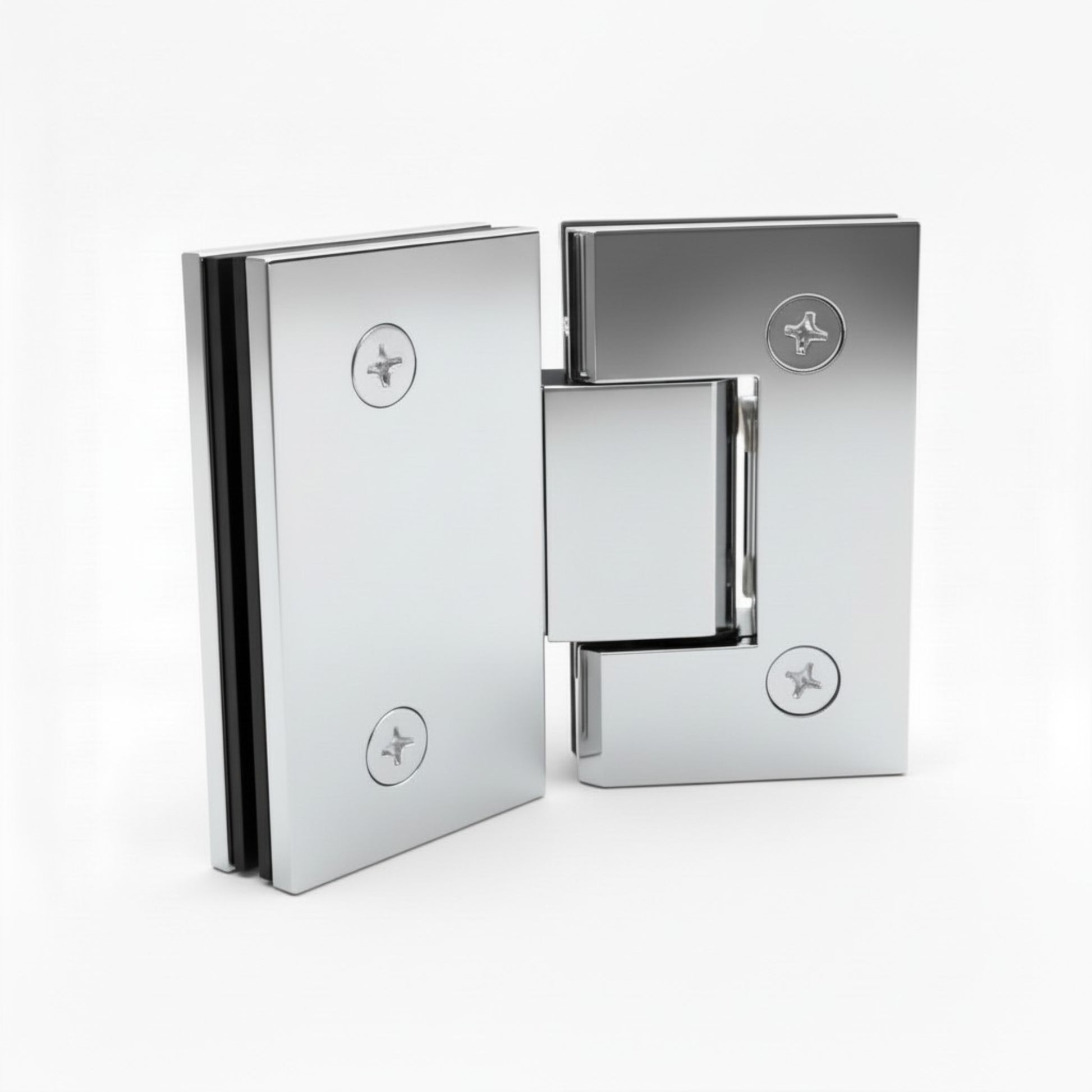

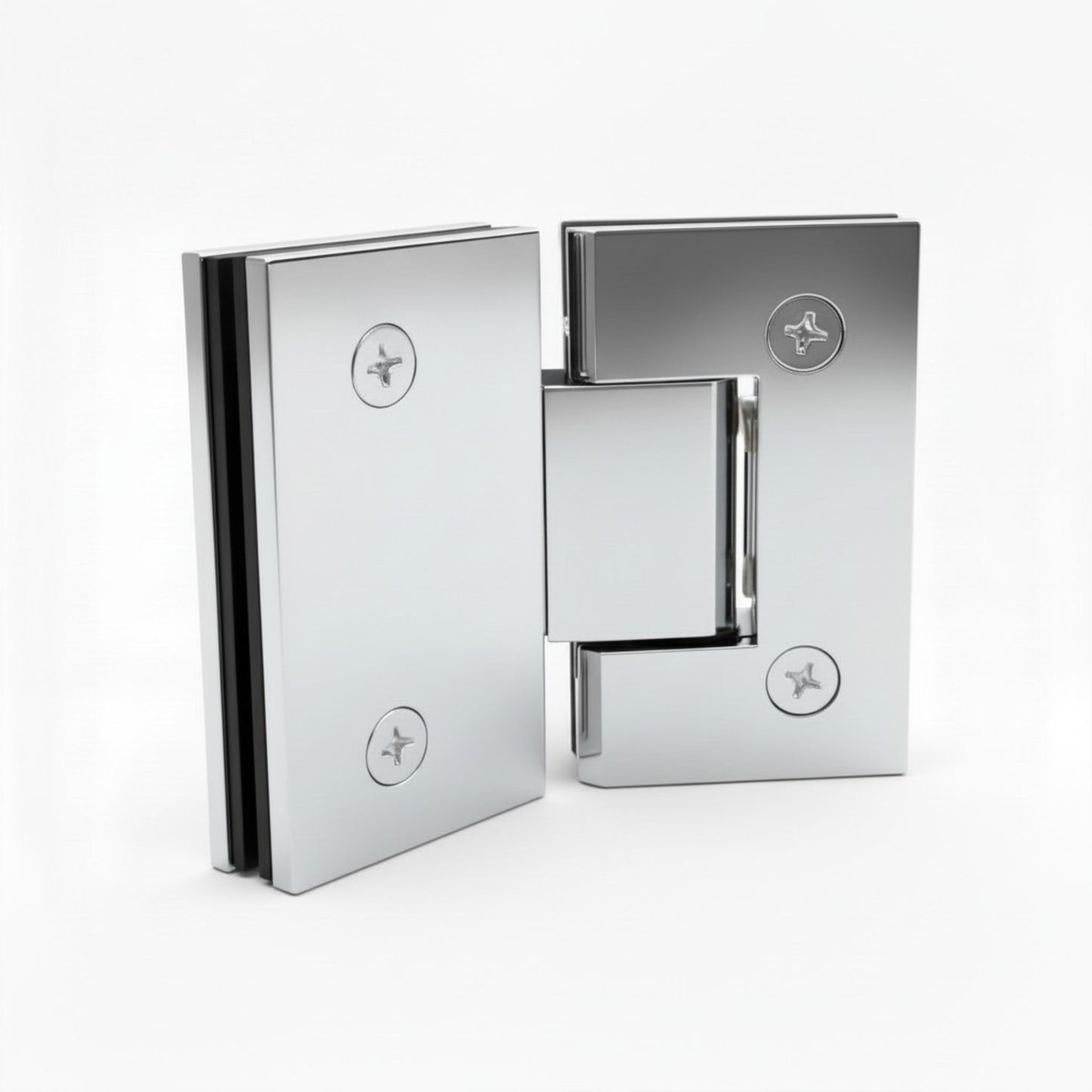

The V045 Neo-Angle 135° Hinge is designed for heavy-duty frameless shower enclosures where two glass panels meet at a 135° angle. Featuring a contemporary square profile, it delivers exceptional strength, dependable support, and a seamless glass-to-glass connection, making it ideal for premium residential and commercial shower installations.
Product Details
Manufactured from high-quality solid brass, the V045 provides outstanding durability, corrosion resistance, and long-lasting performance in demanding bathroom environments. It is compatible with 3/8" to 1/2" (10–12 mm) tempered glass, offering the strength required for larger and heavier shower doors.
Designed specifically for 135° glass-to-glass applications, this fixed, non-adjustable hinge creates a rigid and secure connection while maintaining the clean, frameless appearance of neo-angle shower enclosures.
Door Capacity
|
Installation |
Maximum Door Weight |
Recommended Maximum Door Width |
|
Two Hinges |
110 lbs (50 kg) |
36" (914 mm) |
|
Three Hinges |
140 lbs (63 kg) |
36" (914 mm) |
The V045 is designed for installation using standard tools, providing a straightforward installation process and a secure, reliable fit.
Available Finishes
- Chrome
- Brushed Nickel
- Matte Black
- Satin Brass
- Polished Nickel
Recommended Applications
The V045 is an excellent solution for frameless neo-angle shower enclosures requiring a heavy-duty 135° glass-to-glass hinge. Its solid brass construction, high load capacity, and modern square design provide reliable performance while complementing contemporary bathroom interiors.
Warranty: Backed by a 5-year manufacturer warranty.
