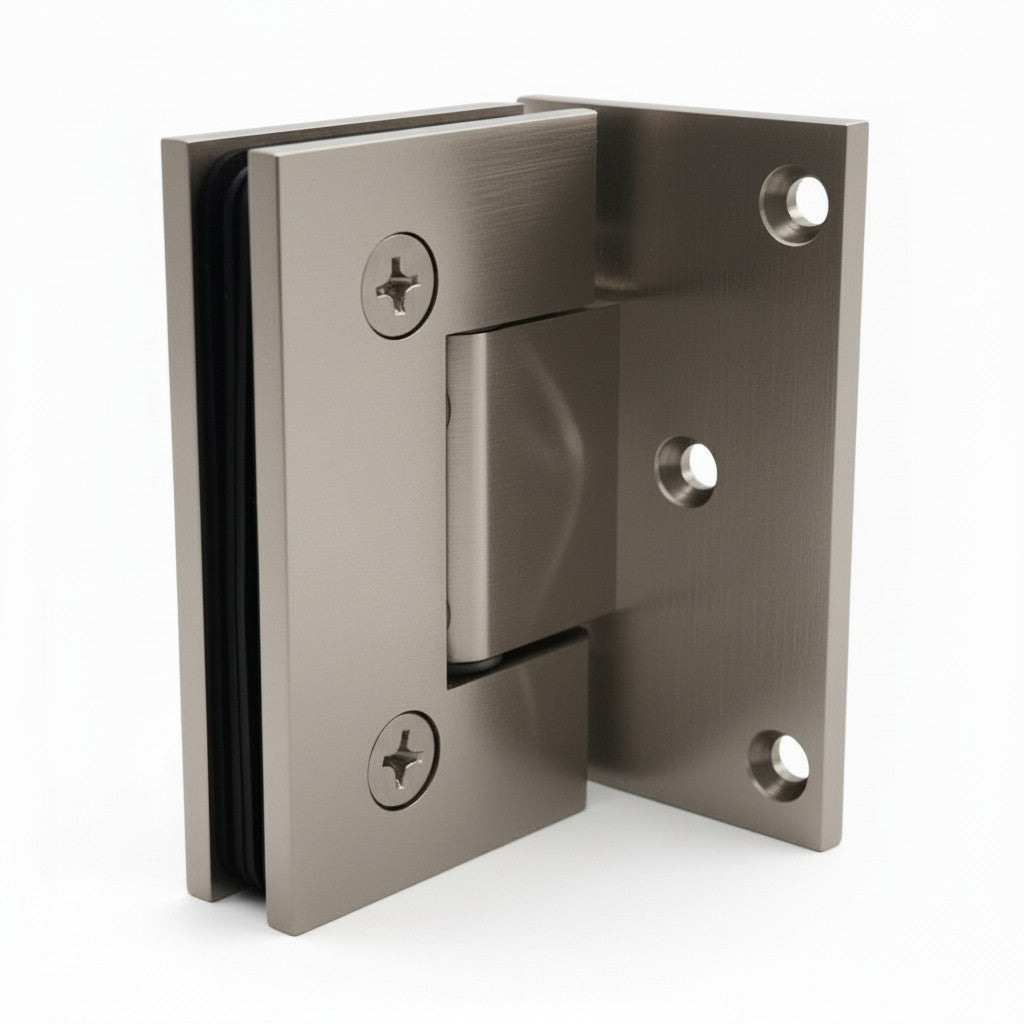

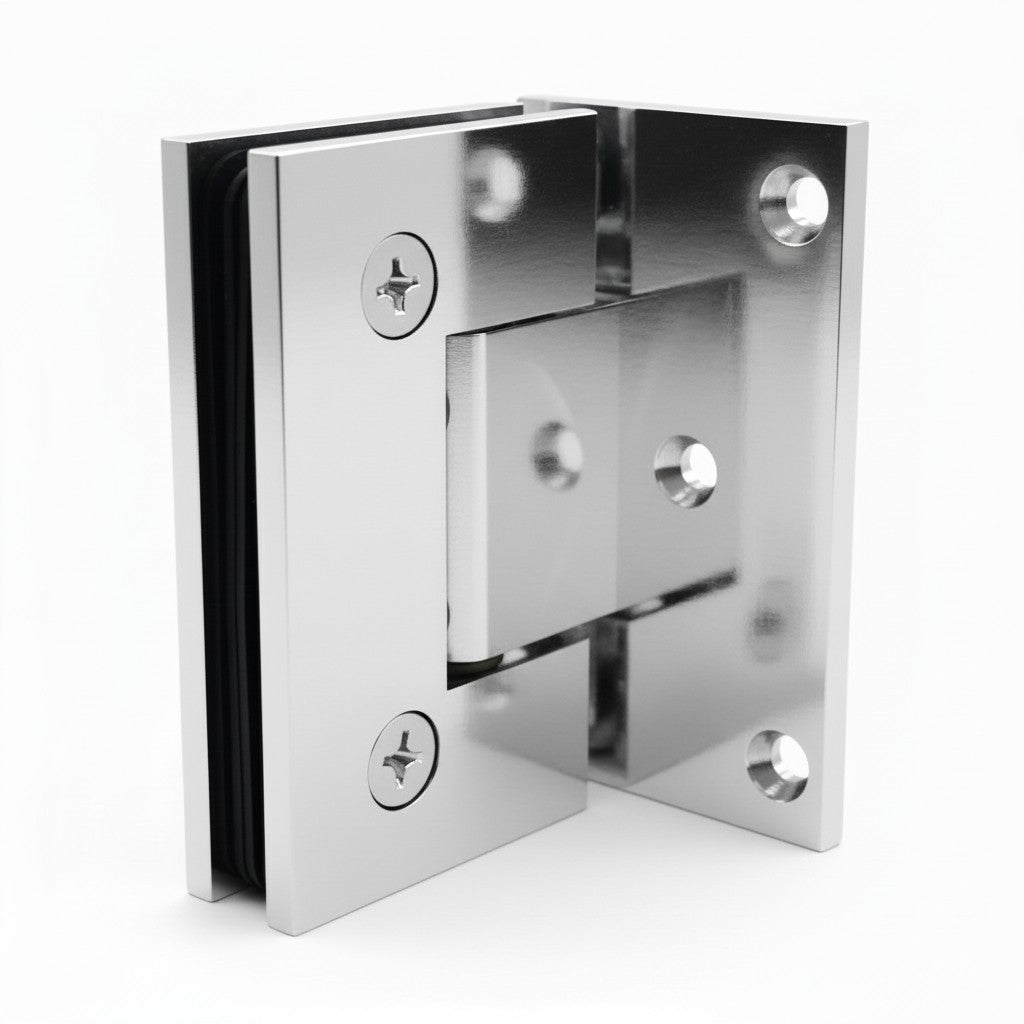

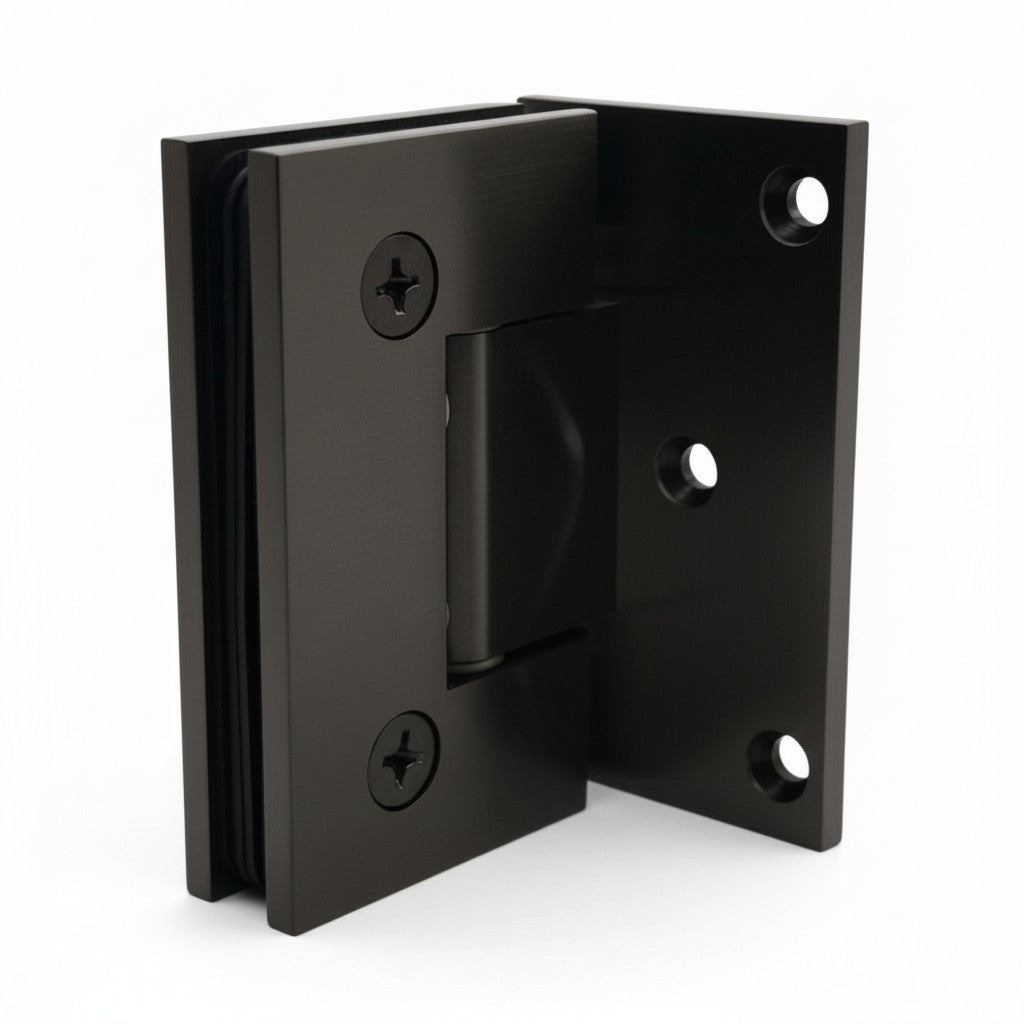

The V044 Offset Wall Mount Hinge is engineered for frameless shower enclosures that require additional support for larger and heavier glass doors. Its contemporary square profile and integrated offset backplate provide enhanced structural stability while maintaining the sleek appearance of modern shower systems.
Product Details
Manufactured from high-quality solid brass, the V044 delivers exceptional strength, corrosion resistance, and long-term durability in demanding bathroom environments. It is compatible with 3/8" to 1/2" (10–12 mm) tempered glass, making it ideal for premium frameless shower installations.
The integrated offset backplate provides additional support for heavier glass doors, while the fixed, non-adjustable design ensures a rigid and secure wall-to-glass connection once properly installed.
Door Capacity
|
Installation |
Glass Thickness |
Maximum Door Weight |
Recommended Maximum Door Width |
|
Two Hinges |
3/8" (10 mm) |
100 lbs (45 kg) |
34" (864 mm) |
|
Two Hinges |
1/2" (12 mm) |
100 lbs (45 kg) |
32" (813 mm) |
|
Three Hinges |
3/8" (10 mm) |
130 lbs (59 kg) |
34" (864 mm) |
|
Three Hinges |
1/2" (12 mm) |
130 lbs (59 kg) |
32" (813 mm) |
The V044 is designed for installation using standard tools, allowing for a straightforward installation process and a secure, reliable fit.
Available Finishes
- Chrome
- Brushed Nickel
- Polished Nickel
- Matte Black
- Satin Brass
Recommended Applications
The V044 is an excellent choice for frameless shower enclosures requiring a heavy-duty wall mount hinge with enhanced structural support. Its solid brass construction, offset backplate, and modern square design make it well suited for larger shower doors in both residential and commercial bathroom installations.
Warranty: Backed by a 5-year manufacturer warranty.
