The V037 H Plate Wall Mount Hinge is engineered for heavy-duty frameless shower enclosures requiring a strong and dependable wall-to-glass connection. Featuring a contemporary square profile, this hinge delivers exceptional structural support while maintaining the clean, sophisticated appearance of modern shower systems.
Product Details
Manufactured from high-quality solid brass, the V037 provides outstanding strength, corrosion resistance, and long-lasting durability in demanding bathroom environments. It is compatible with 3/8" to 1/2" (10–12 mm) tempered glass, making it ideal for supporting larger and heavier shower doors.
Designed with a fixed, non-adjustable configuration, the V037 provides a rigid and secure wall-to-glass connection, ensuring stable door performance once properly installed.
Door Capacity
|
Installation |
Maximum Door Weight |
Recommended Maximum Door Width |
|
Two Hinges |
110 lbs (50 kg) |
36" (914 mm) |
|
Three Hinges |
140 lbs (63 kg) |
36" (914 mm) |
The V037 is designed for installation using standard tools, providing a straightforward installation process and a secure, reliable fit.
Available Finishes

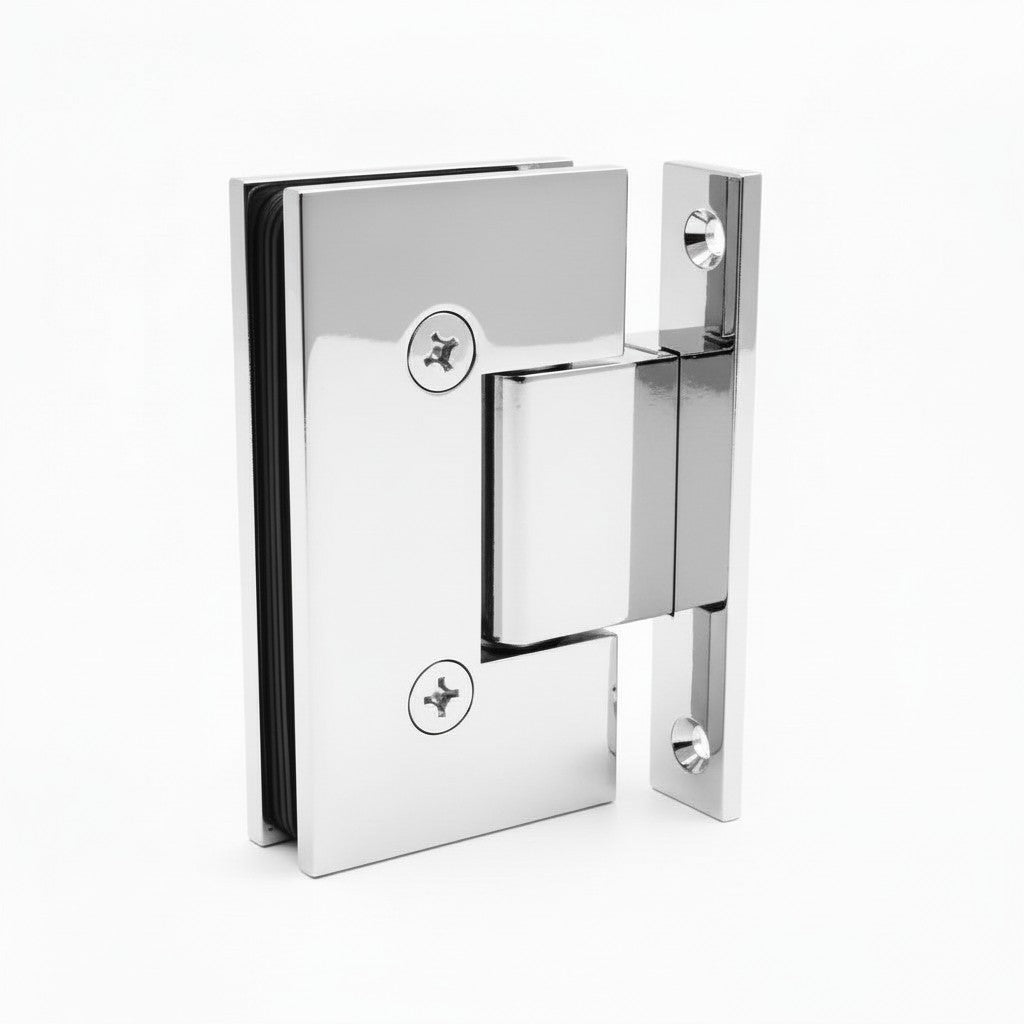

- Chrome

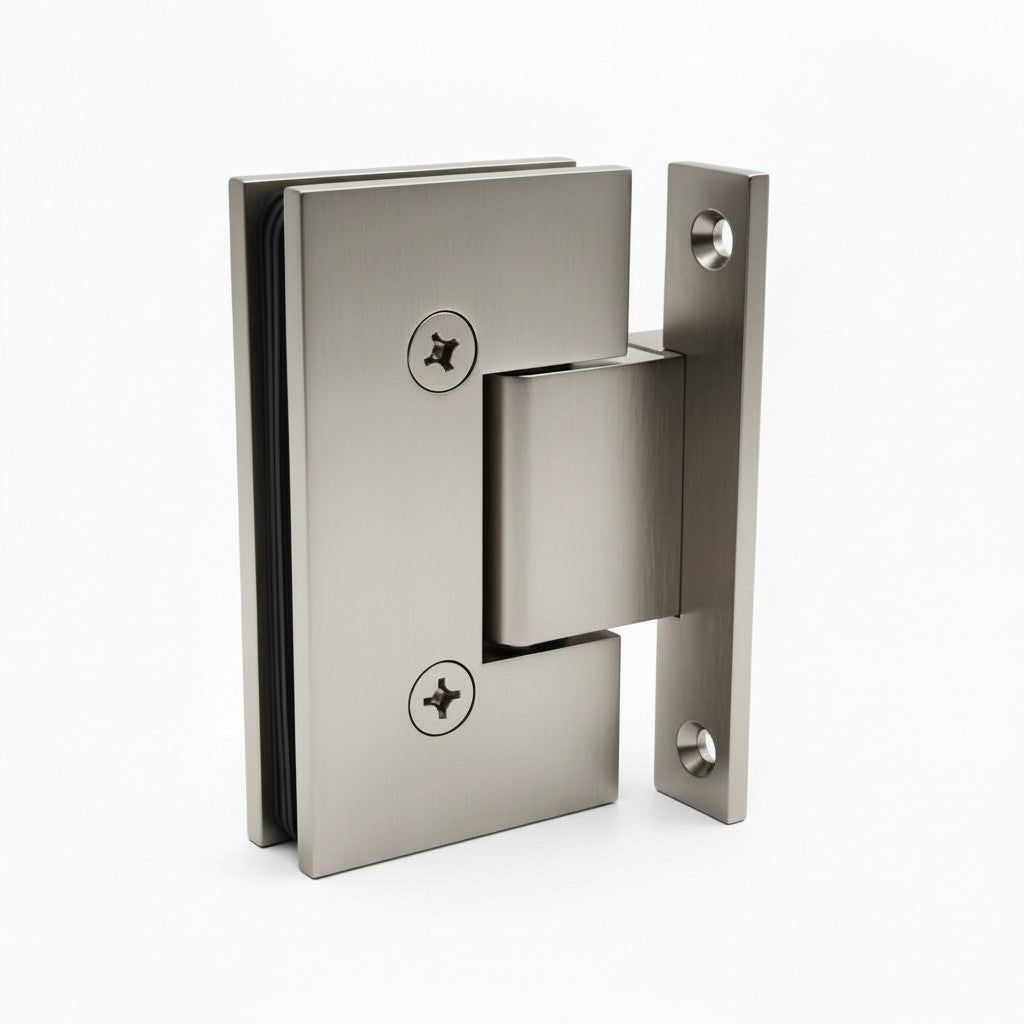

- Brushed Nickel

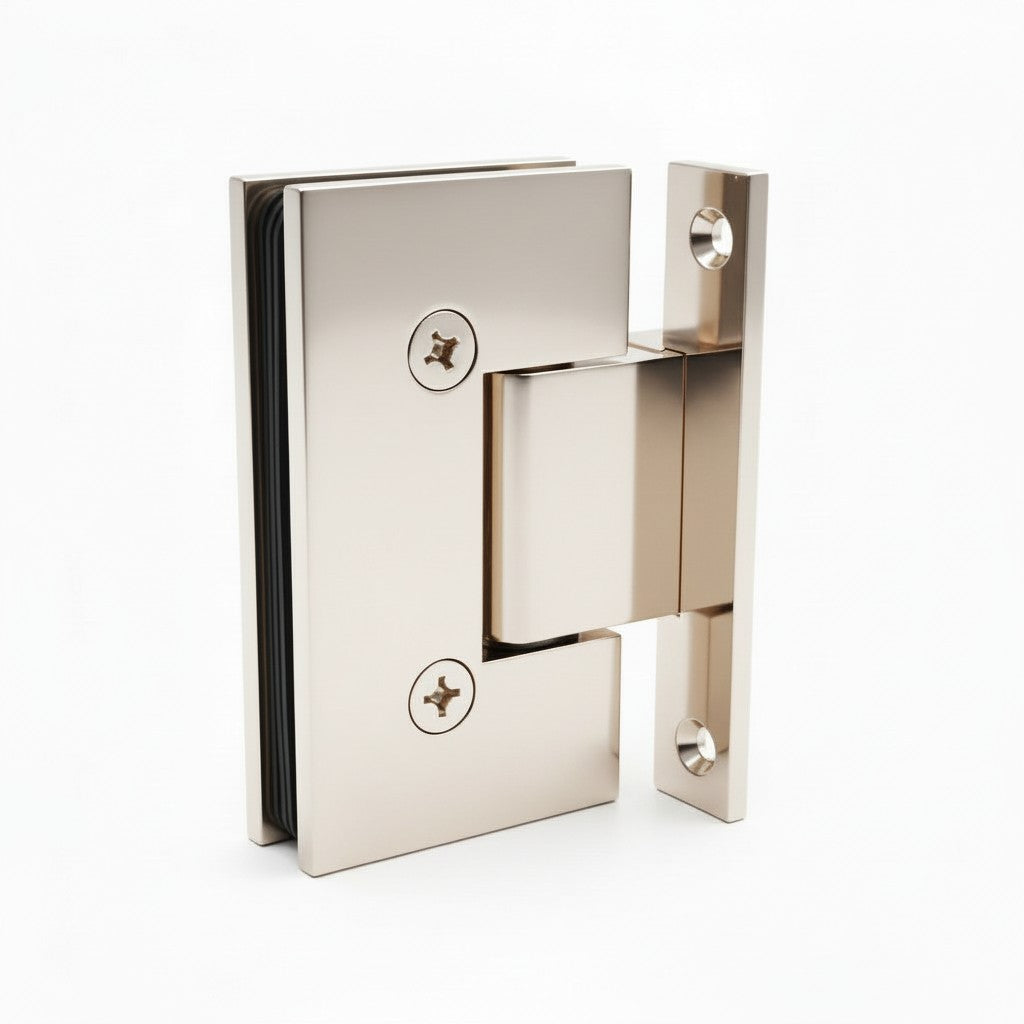

- Polished Nickel

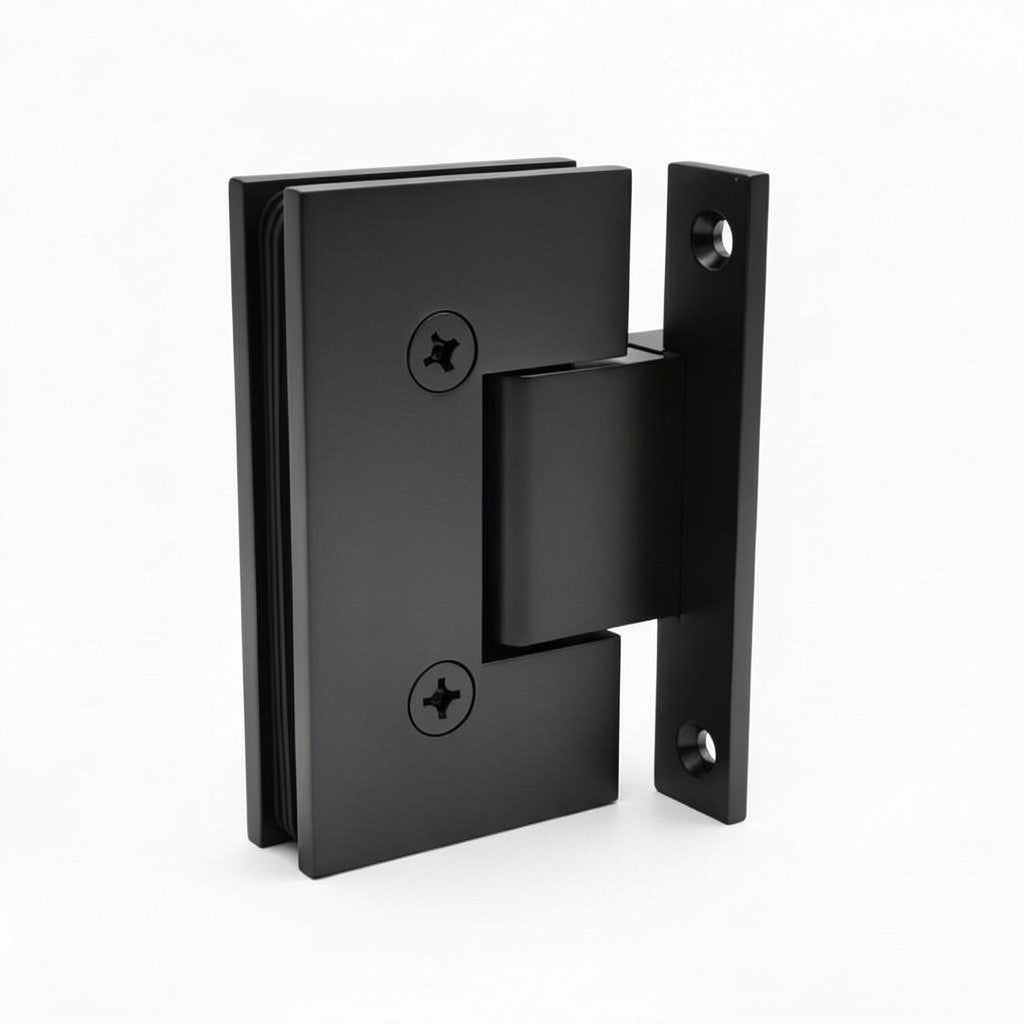

- Matte Black

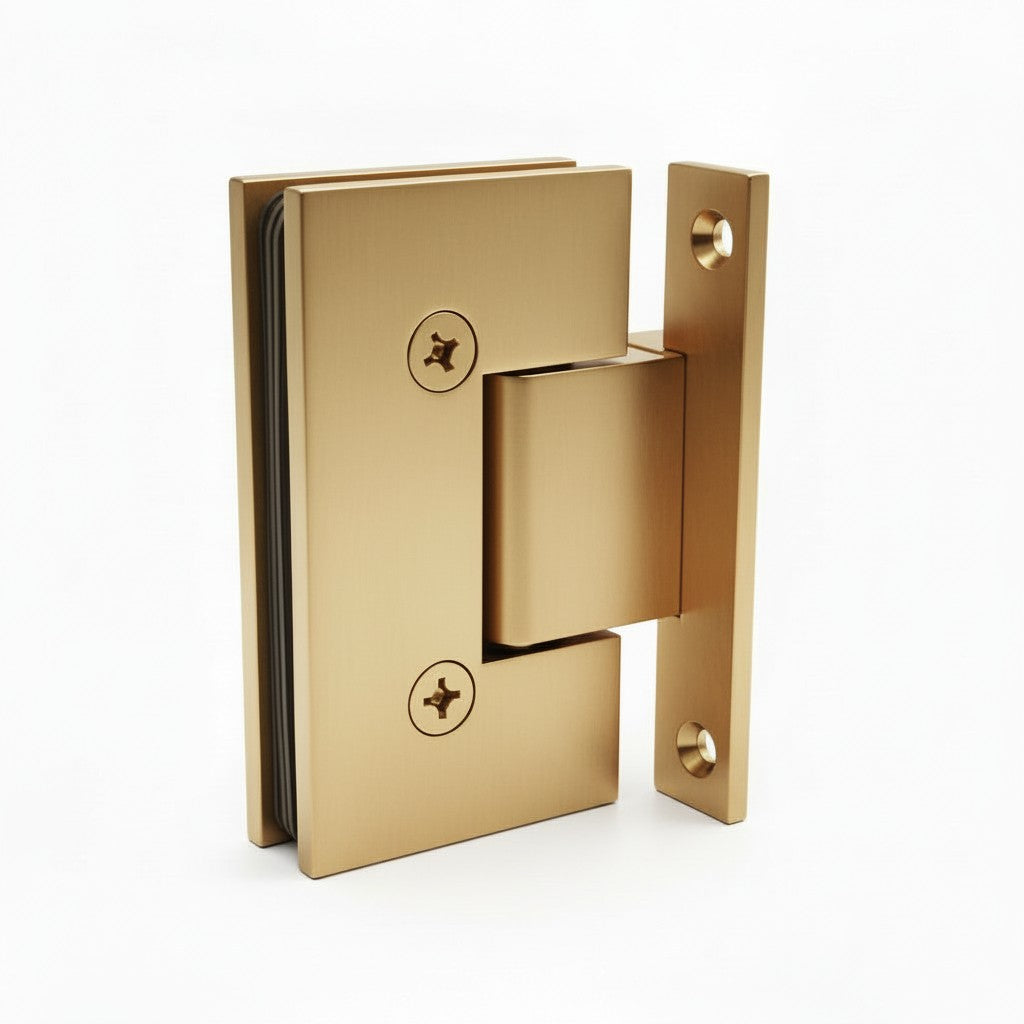

- Satin Brass
Recommended Applications
The V037 is an ideal solution for frameless shower doors requiring a heavy-duty wall mount hinge. Its solid brass construction, high load capacity, and modern square design make it well suited for premium residential and commercial shower installations where strength, stability, and long-term performance are essential.
Warranty: Backed by a 5-year manufacturer warranty.
