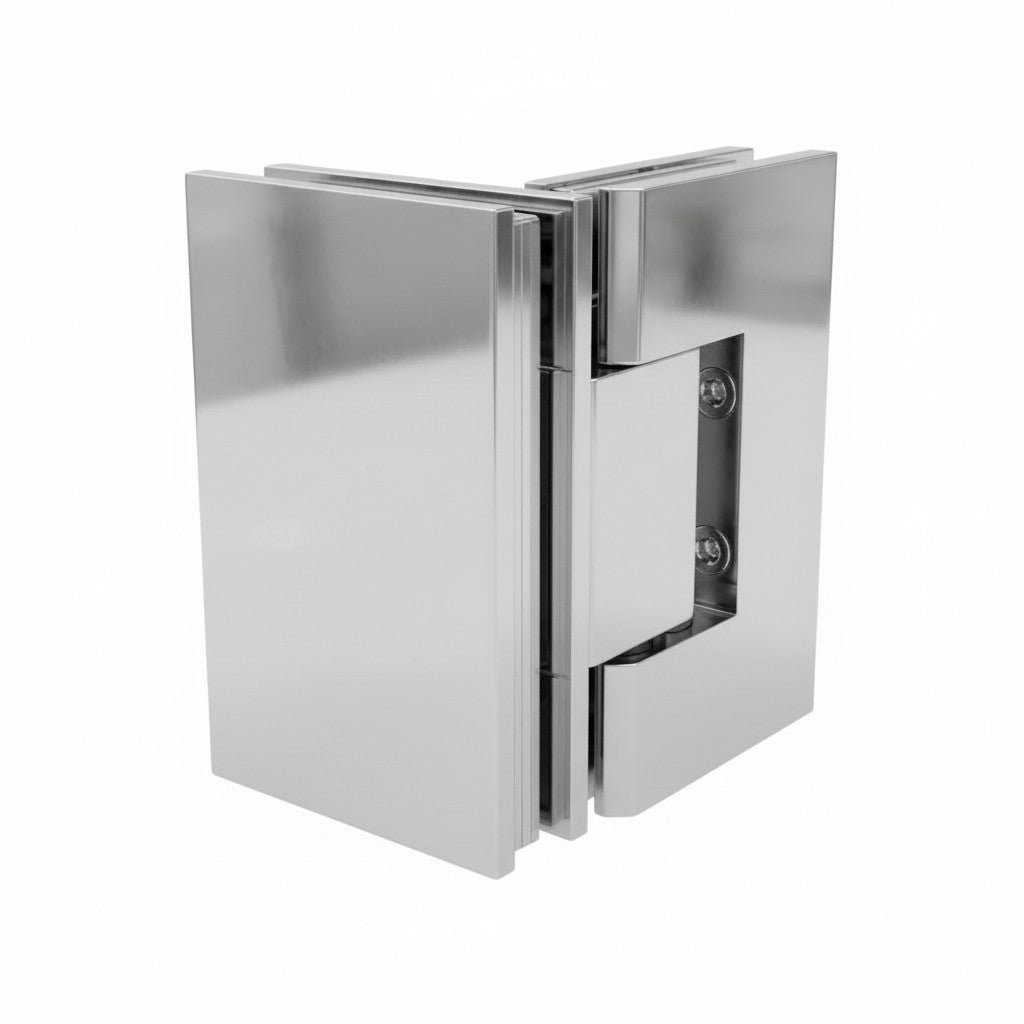

The G092 90° Glass-to-Glass Hinge is engineered for frameless shower enclosures where two glass panels meet at a right angle. Designed with a contemporary square profile, it delivers a strong and secure connection while maintaining the clean, minimalist look of modern glass shower systems.
Product Details
Precision manufactured from high-quality solid brass, the G092 provides exceptional strength, corrosion resistance, and long-lasting durability in bathroom environments. Compatible with 5/16" to 1/2" (8–12 mm) tempered glass, it incorporates pre-attached tactile gaskets with Anti-Slip Technology to improve glass grip and enhance stability while helping protect the glass from direct metal contact.
The hinge is specifically designed for 90° glass-to-glass applications, creating a rigid corner connection that preserves the open, frameless appearance of the enclosure.
Door Capacity
|
Installation |
Maximum Door Weight |
Maximum Door Width |
|
Two Hinges |
80 lbs (36 kg) |
28" (711 mm) |
|
Three Hinges |
120 lbs (54 kg) |
32" (813 mm) |
Installation is completed using standard tools, while the factory-installed gaskets help reduce installation time and ensure a secure, accurate fit.
Available Finishes
- Chrome

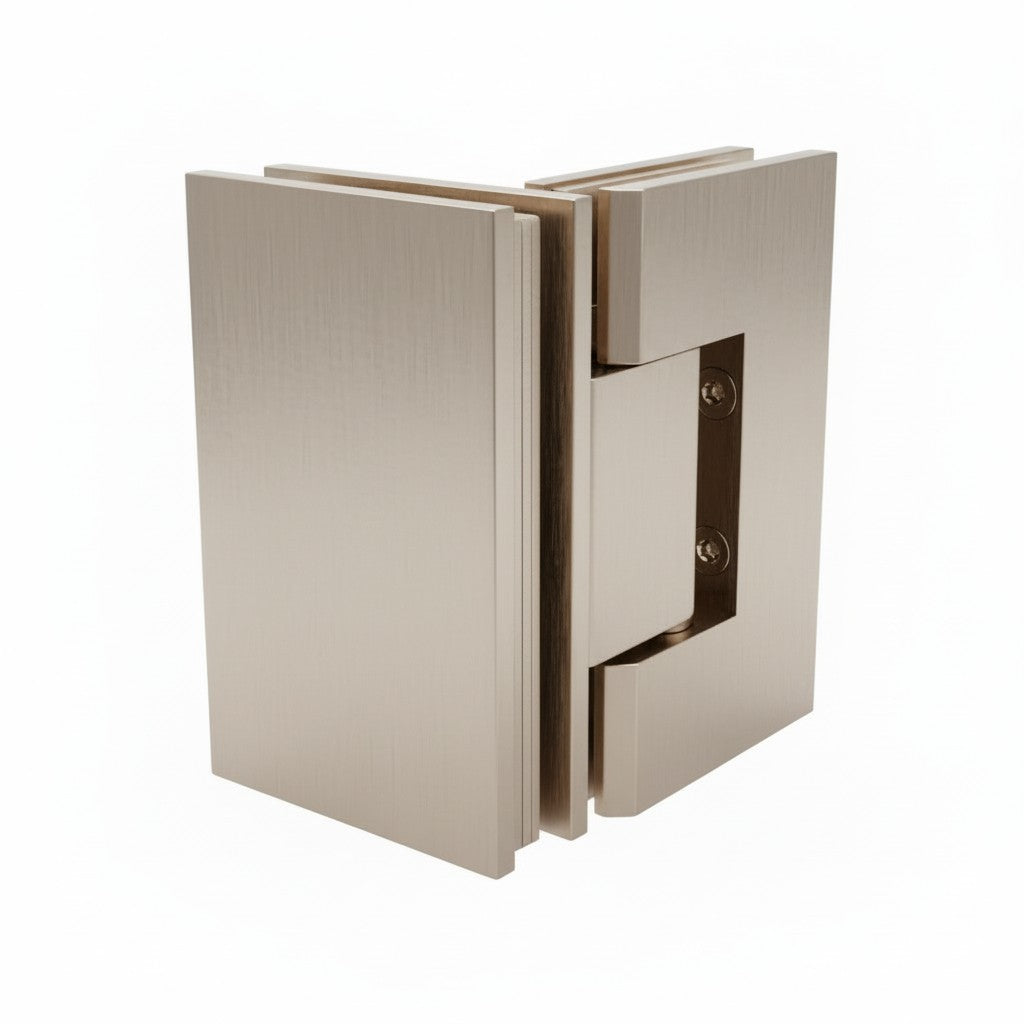

- Brushed Nickel

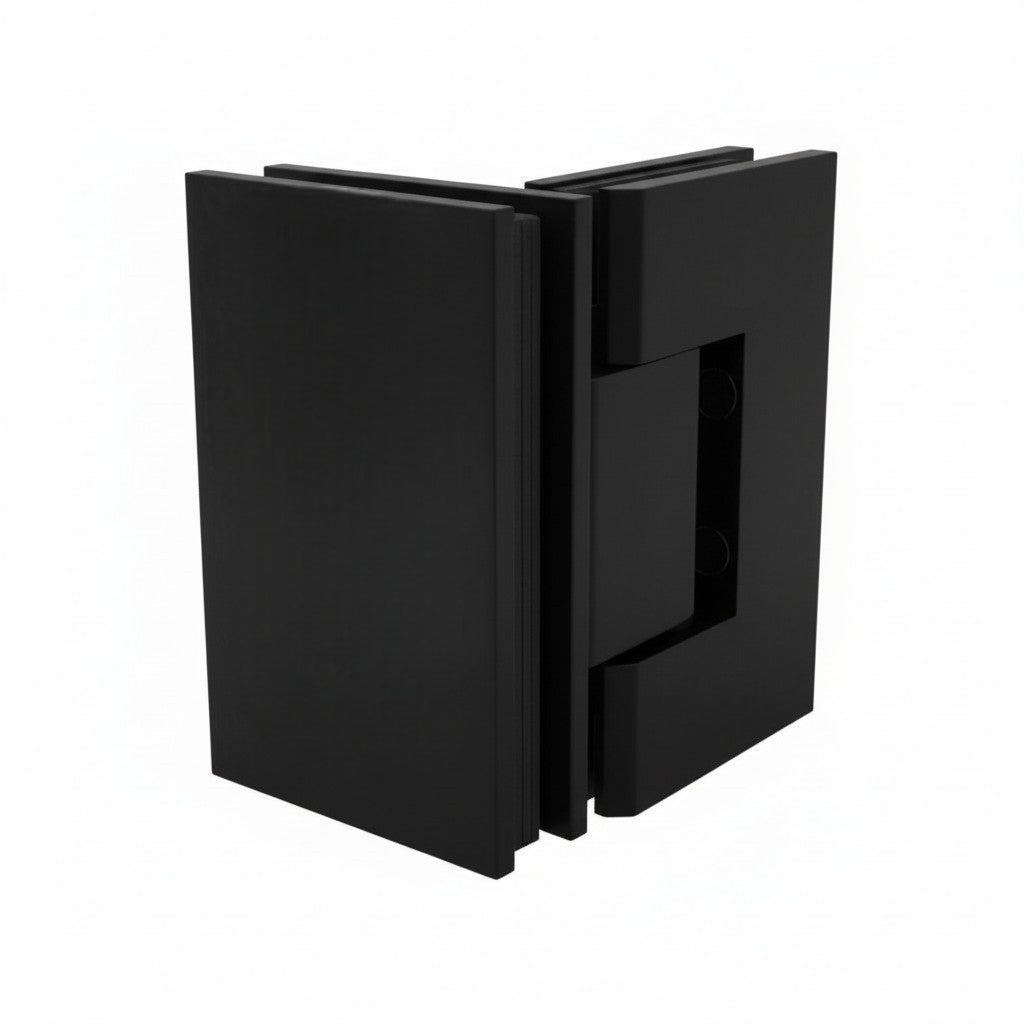

- Matte Black

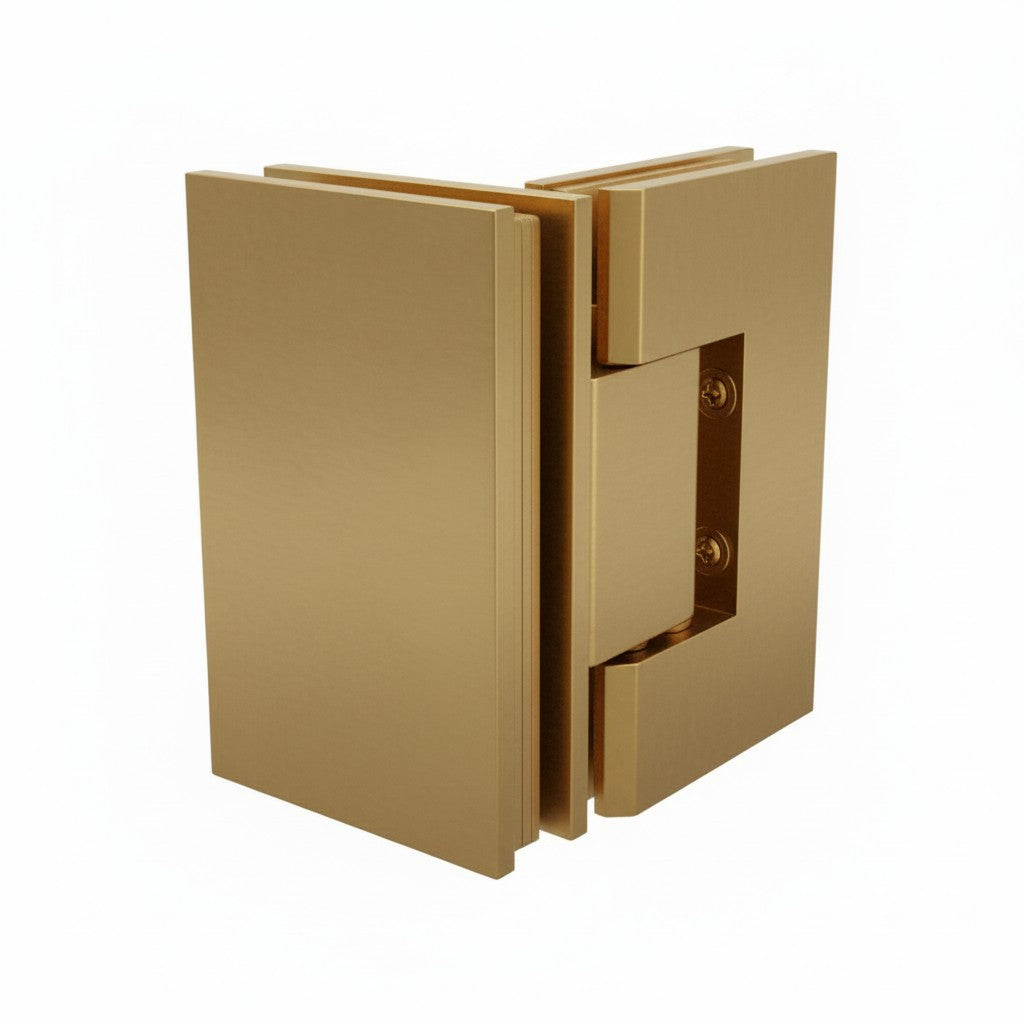

- Satin Brass

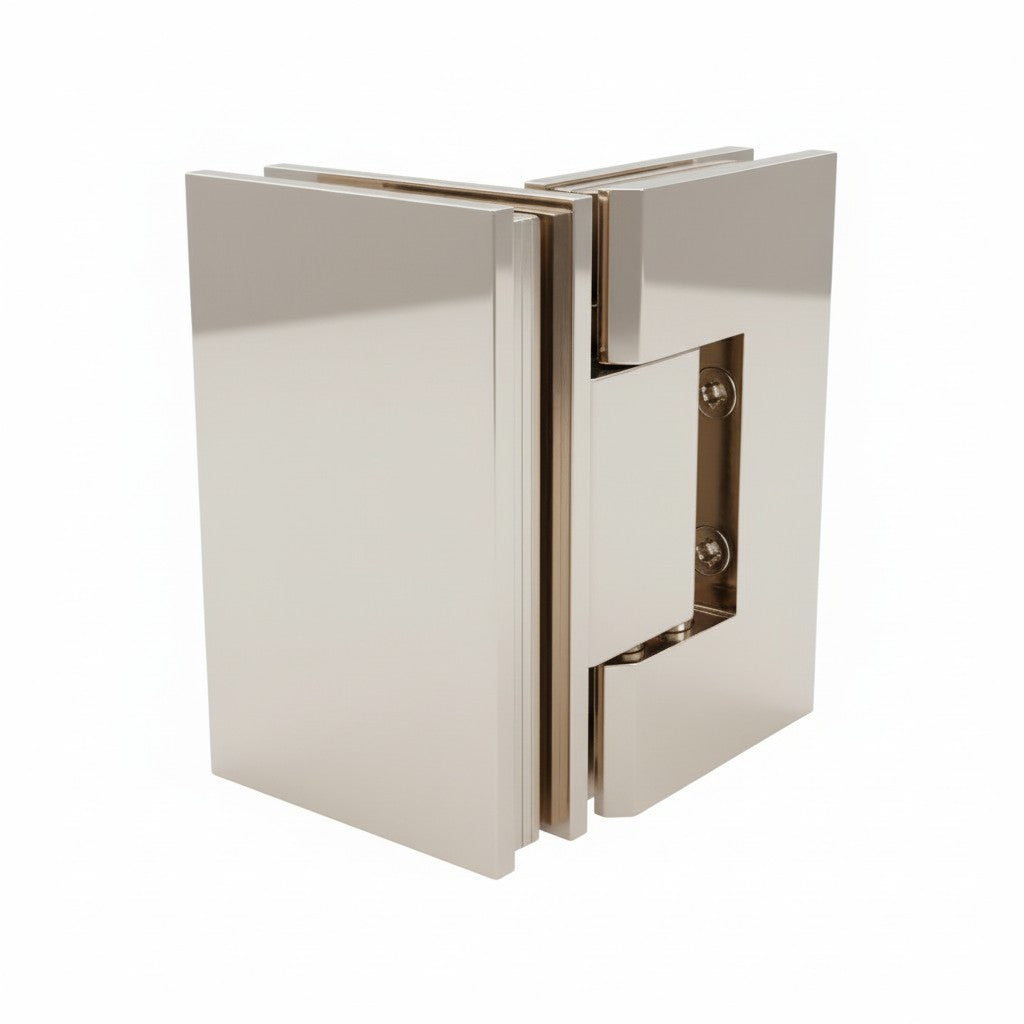

- Polished Nickel
Recommended Applications
The G092 is designed for frameless shower enclosures requiring a dependable 90° glass-to-glass connection. Its durable brass construction, secure glass retention, and modern square styling make it an ideal choice for residential and commercial corner shower installations.
Warranty: Backed by a 5-year manufacturer warranty.
