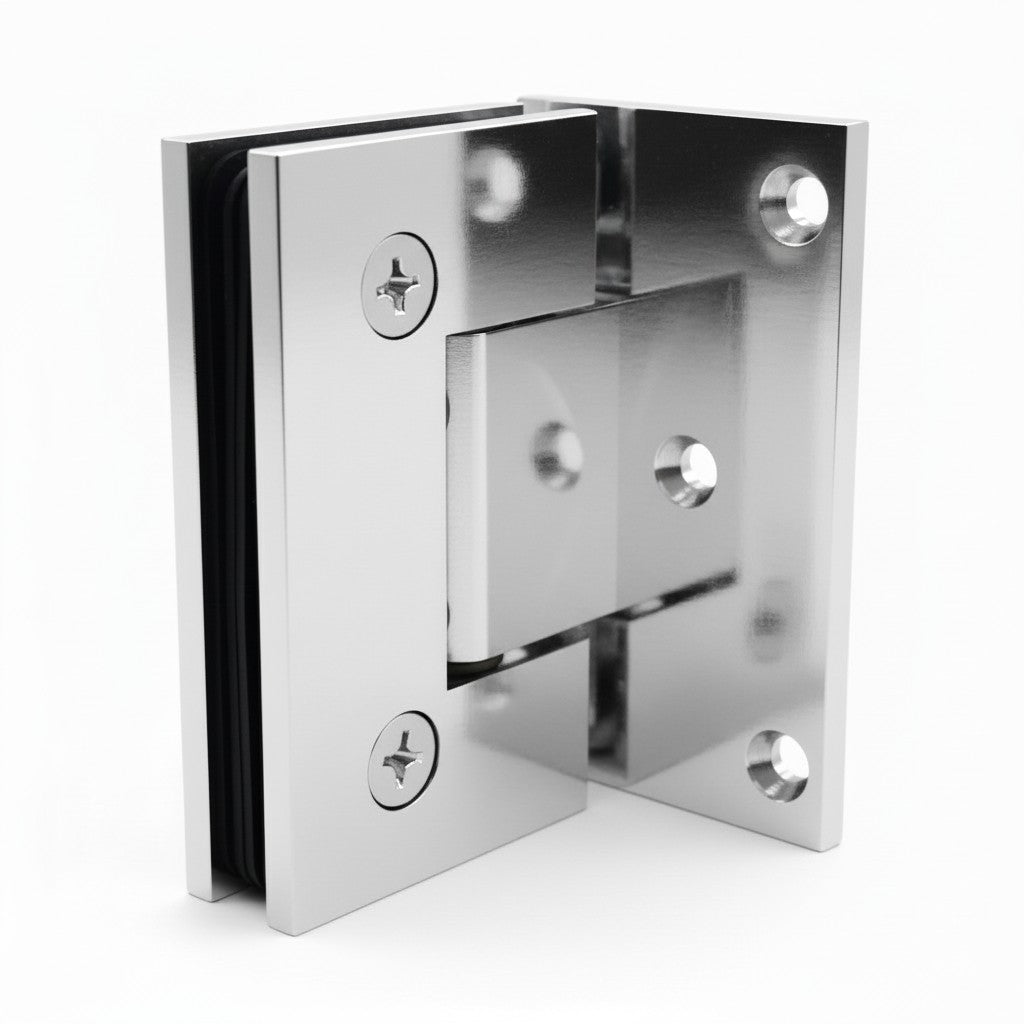

The G044 Offset Plate Hinge is designed for frameless shower doors requiring a secure and flexible glass-to-wall mounting solution. Its square profile and offset plate design provide additional installation versatility while maintaining the clean, contemporary appearance of modern shower enclosures. Built for reliable everyday performance, the G044 combines durability, smooth operation, and precision alignment.
Product Details
Manufactured from high-quality solid brass, the G044 offers excellent strength, corrosion resistance, and long-lasting performance in wet environments. It is compatible with 5/16" to 1/2" (8–12 mm) tempered glass and features pre-attached tactile gaskets with Anti-Slip Technology to improve grip and help protect the glass during installation and daily use.
The integrated 5° reversible pin allows precise door alignment and fine adjustment of the closing position, providing greater flexibility during installation.
Door Capacity
|
Installation |
Maximum Door Weight |
Maximum Door Width |
|
Two Hinges |
80 lbs (36 kg) |
28" (711 mm) |
|
Three Hinges |
120 lbs (54 kg) |
32" (813 mm) |
Designed for installation with standard tools, the factory-installed gaskets help simplify the installation process while ensuring a secure and accurate fit.
Available Finishes
- Chrome

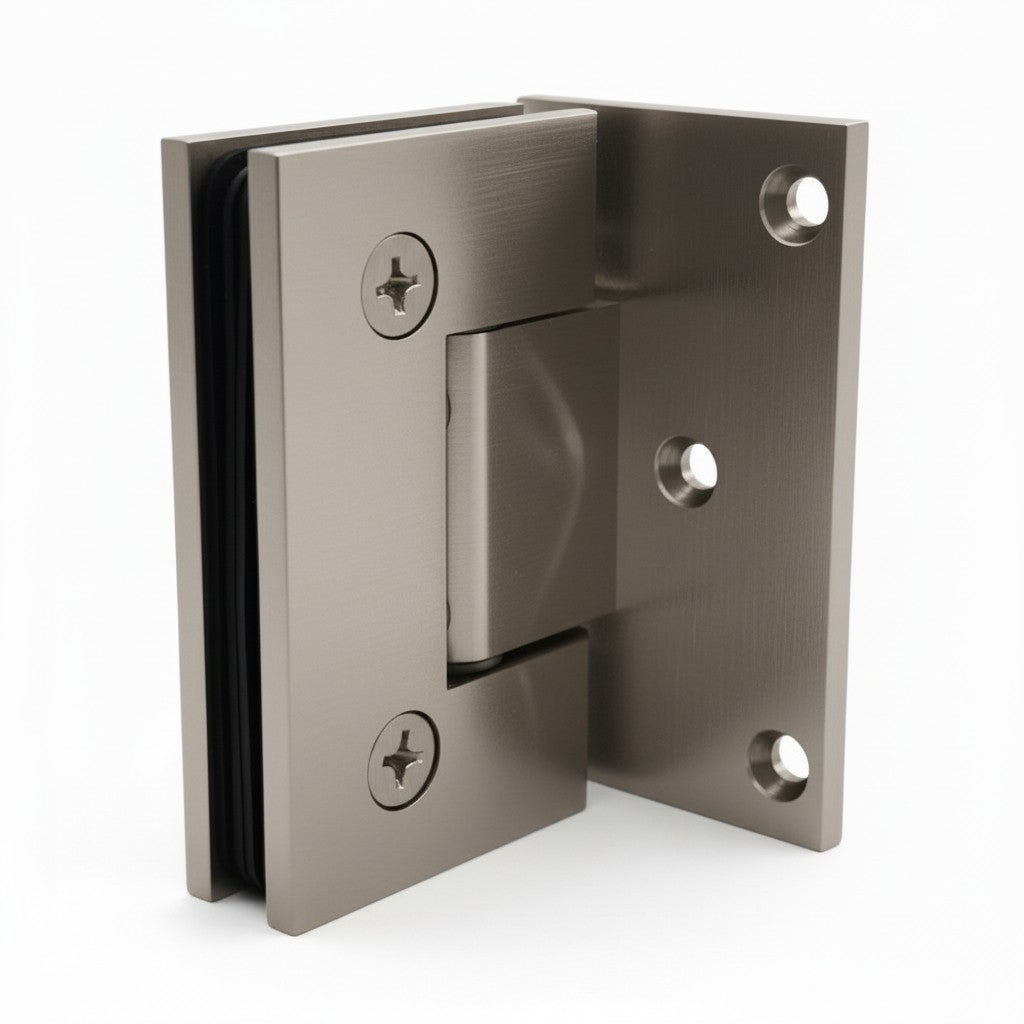

- Brushed Nickel

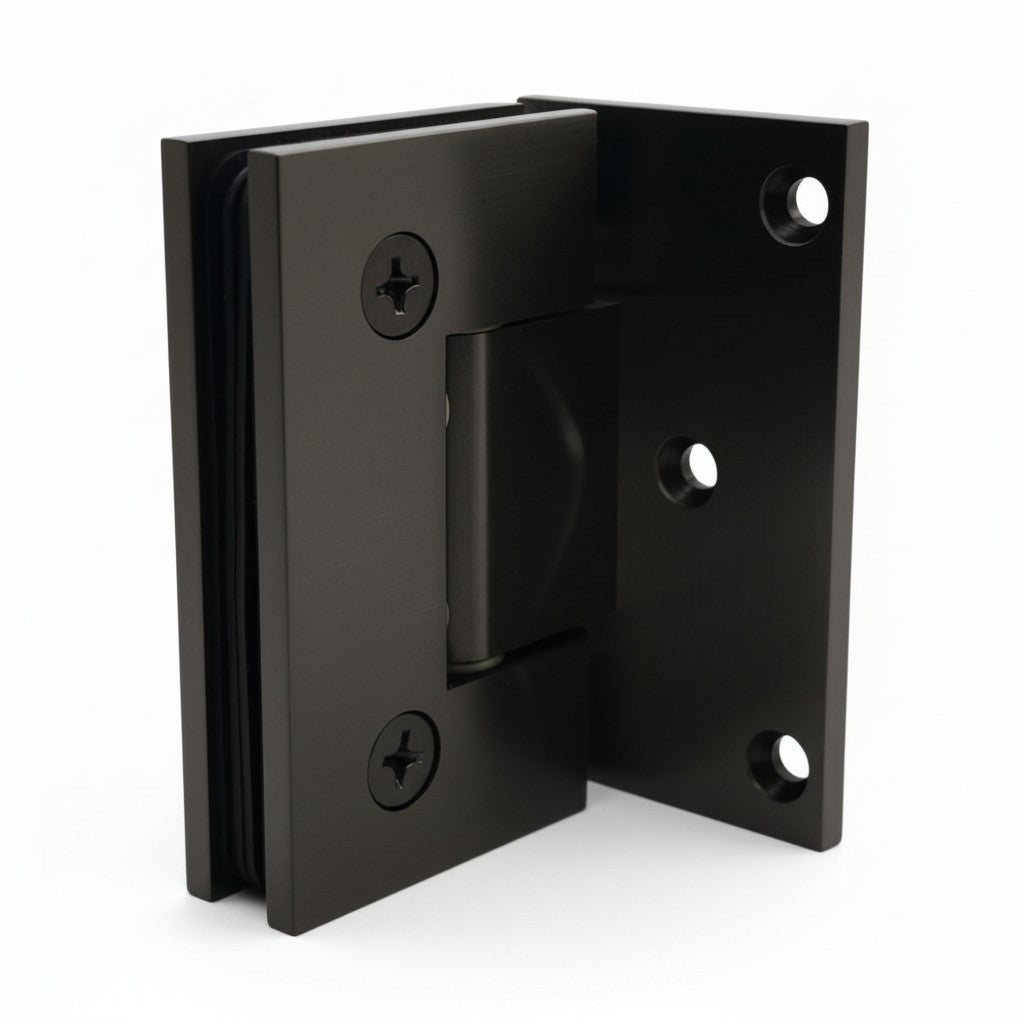

- Matte Black
- Satin Brass
- Polished Nickel
Recommended Applications
The G044 is an excellent choice for frameless shower enclosures where an offset glass-to-wall hinge is required. Its durable construction, and modern square design make it well suited for both residential and commercial installations that require installation flexibility without compromising performance.
Warranty: Backed by a 5-year manufacturer warranty.
